281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color

Name: 281907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
Brand: WONKEDQ
Price: 1 USD

281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color Manufactures

Brand Name : WONKEDQ

Model Number : 281-907

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Voltage : 800V

Current : 32A

Length : 59.5

Height : 37.5

Wide : 6

Conductor Size : 28-12 AWG

Contact Now

281-907 Earthing DIN Rail Terminal Blocks

281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel

1. DESCRIPTION

Equipped with the unique spring cage connection technology, the rail-mounted terminal blocks offer a wide variety of use in industrial and hazardous applications, as well as in building automation. Thanks to their small size, more room is left for wiring in the control cabinets and terminal boxes.

Made from flaming retarding Nylon PA 66 with Copper conductors.
Can be fast installed, the spring conductors are against vibration.
It is maintenance-free for long time using.
Long durable time.
convenient and safe operation.
Safe and reliable connection.
Automatic contact spring.
Shock resistance & Corrosion resistance.
All types of materials are guaranteed in quality.
Our terminal blocks are preferably used in electrical machine control systems
With combine foot which can be installed on 35mm Universal Din Rail.
Accessories available: End covers, End Stoppers,Marker strip, Bridges, etc.

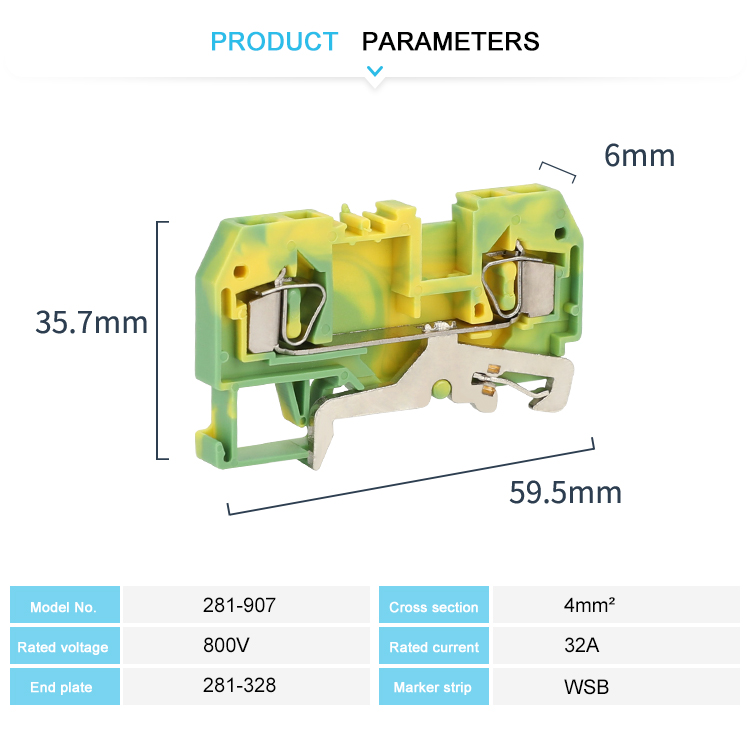

2.TECHNICAL PARAMETERS

Model No.	281-907
Color	Yellow/Green other color can be customized
Length/Height/Wide (mm)	59.5/37.5/6
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section	0.08-4 mm²
Conductor Size	28-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	11.92g/pc, 50PCS/BOX,2000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3.RELATED PRODUCTS

Installation Rail Mount Terminal Blocks
DIN Rail Spring Terminals
Triple Deck Terminal Block
Ground Terminal Connector
PE DIN Rail Terminal Blocks
Spring Type Terminal Blocks
