JST 1.5 Spring DIN Rail Spring Terminal Block Connector , Spring Loaded Terminal Anti - Vibration

Name: JST 15 Spring DIN Rail Spring Terminal Block Connector Spring Loaded Terminal Anti Vibration
Brand: WONKEDQ
Price: 1 USD

JST 1.5 Spring DIN Rail Spring Terminal Block Connector , Spring Loaded Terminal Anti - Vibration Manufactures

Brand Name : WONKEDQ

Model Number : JST 1.5

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Color : Grey, Blue, other color can be customized

Dimension : L49/H36/W4.2

Material of housing : Flame resistant Nylon PA66

Material of conductor : Tin plated brass conductor

Conductor Size : 26-16 AWG

Logo : WONKEDQ, LOGO can be customized

Packing Detail : 4.67g/pc, 100PCS/BOX, 4200PCS/CTN

Contact Now

JST 1.5 Spring Cage Terminal Blocks

JST 1.5 Spring Terminal Block Connector , Spring Loaded Terminal Anti - Vibration

1. DESCRIPTION

The spring clamp is made from nickel plated steel material and the copper current bar comes with a surface treatment which offers a consistent and stable wiring connection even in vibrating applications.

The spring clamp connection also offers a shorter wire installation time and is easy to maintain.

Made from Inflaming retarding PA 66 with nickle plated brass metal

Saving space, the compact design and front connection can save a lot of space.

Easy to operate.

Optimized wiring scheme.

Multiple identification bits.

Corrosion-proof contact point.

All types of materials with high quality.

With universal foot which can be installed on Din Rail NS 35.

All types of accessories: End covers, End Stoppers, marker strip, fixed bridge, etc.

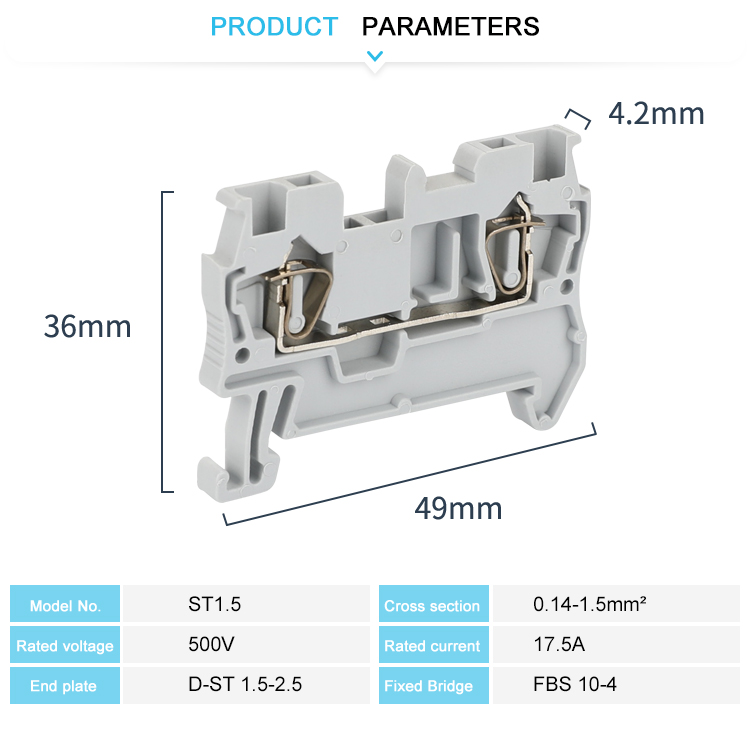

2.TECHNICAL PARAMETERS

Part No.	JST 1.5
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	49/36/4.2
Connection method	Spring connection
Material	Nylon PA66
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.14-1.5 mm² / 0.14-1.5 mm²
Conductor Size	26-16 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	4.67g/pc, 100PCS/BOX,4200PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
