Spring Cage Connection Din Rail 2.5mm Terminal Block

Name: Spring Cage Connection Din Rail 25mm Terminal Block
Brand: WKDQ
Price: 1 USD

Spring Cage Connection Din Rail 2.5mm Terminal Block Manufactures

Brand Name : WKDQ

Model Number : JPT 2.5 TWIN

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 1000pcs

Delivery Time : 2-7days

Packaging Details : PCS

Type : Push In Terminal Block

Length/Height/Wide (mm) : L60.5/H36.5/W5.2 mm

Rated Voltag : 800V/31A

Application : Power

Color : Grey/,Blue, other color can be customized

Contact Now

1Multi Conductor Din Rail 2.5mm Spring Cage Connection Terminal Block

1. DESCRIPTION:

Push-In Technology DIN Rail Terminal Blocks Push-In technology allows wires to be connected easier and faster than ever before.Users can quickly connect ferruled wires by directly pushing them into the terminal, without the use of tools.

l Made from Anti Inflaming Nylon PA 66, nickel plated brass bar.

l The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.

l The compact design and front connection enable wiring in a confined space.

l Stranded wires can also be connected by depressing the orange actuator, and inserting the conductor.

l The wires are retained with a stainless steel leg spring which tightens under tension.

l With universal foot which can be installed on Din Rail NS 35.

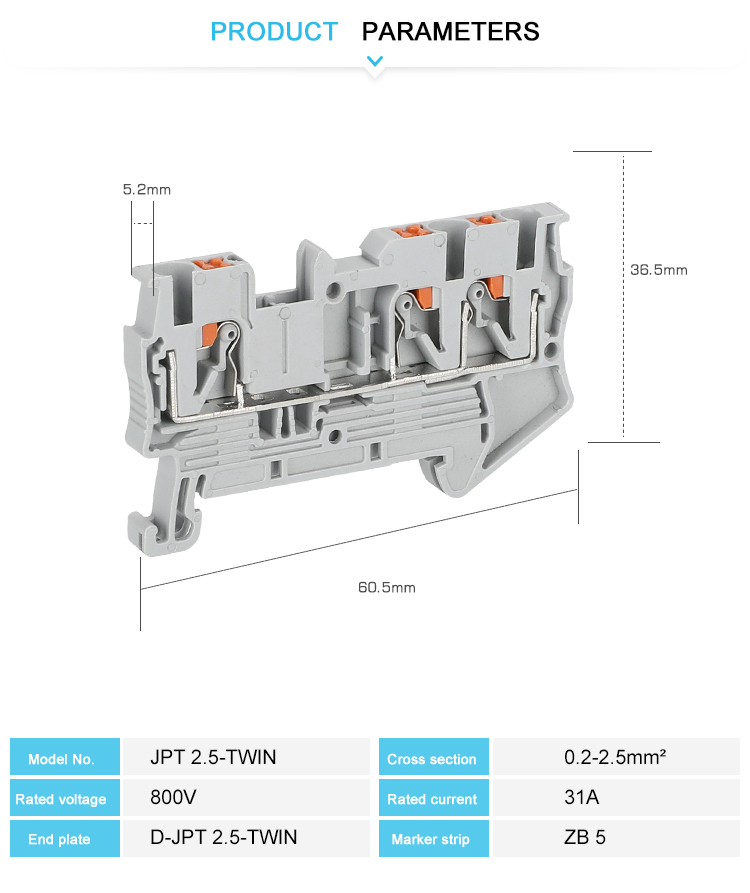

Technical Parameters

Model No.	JPT 2.5-TWIN
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	60.5/36.5/5.2
Connection method	Push in connection
Material	Nylon PA66
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35 mm
Standard	IEC 60947-7-1
LOGO	Customized logo are accept
Packing Detail	7.19g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

Spring Cage Connection Din Rail 2.5mm Terminal Block
