Industrial Power Wire Distribution Block , Din Rail Distribution Block UKK 250A

Name: Industrial Power Wire Distribution Block Din Rail Distribution Block UKK 250A
Brand: WONKEDQ，WKDQ
Price: 1 USD

Industrial Power Wire Distribution Block , Din Rail Distribution Block UKK 250A Manufactures

Brand Name : WONKEDQ，WKDQ

Model Number : UKK 250A

Certification : CE, RoHs, CQC,etc

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Logo : WONKEDQ CONTACT

Color : Grey+Blue

Connecting : Screw connection Terminal Box

Type : DIN Rail Terminal Blocks.

Material : Nylon+PC

Contact Now

Industrial Power Distribution Terminal Block UKK 250A

UKK 250A Brass Conductor Power Distribution Terminal Block

Requirements have placed the focus squarely on distribution blocks for users.

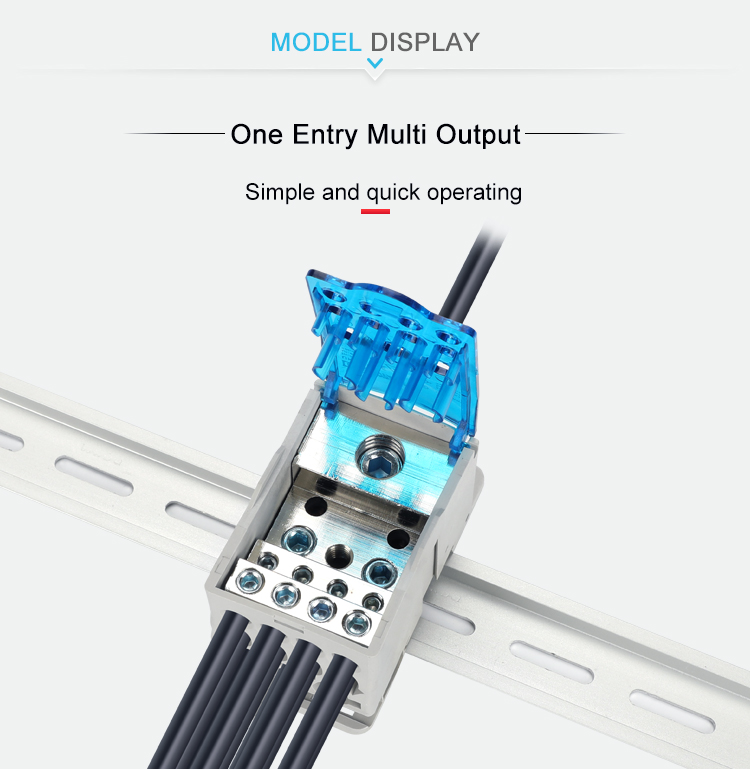

The design ensures excellent user-friendliness in distribution blocks. The step design in the brass body leaves conductor insertion in clear view at all times through a transparent cover.This makes assembly of the distribution blocks easy and safe while wiring up the terminals.

With high degree of user-friendliness, cost efficiency and safety.
High safety.
Blue and Grey color.
Simple and quick operating.
Profession power design.
Safe and stable performance.
Made from safe and high quality material.

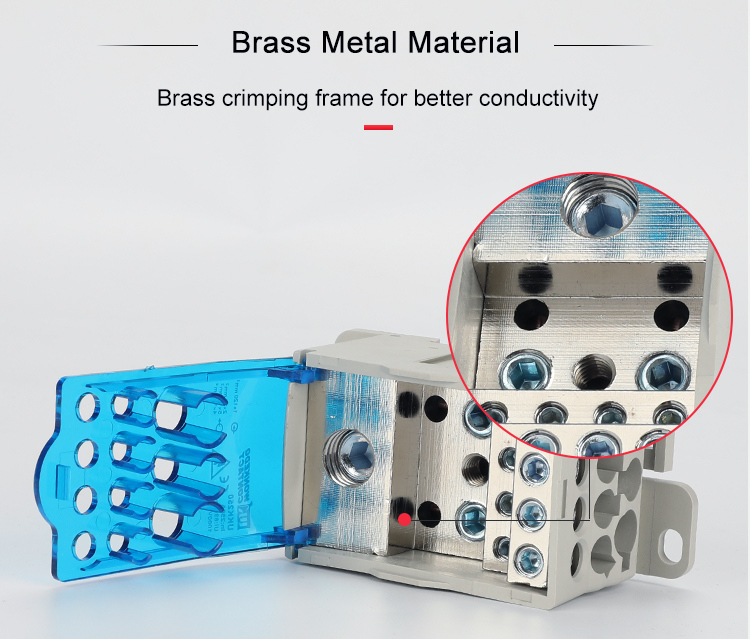

Brass crimping frame for better conductivity.
Reasonable Design save the installation space.
Install on DIN rail or mounting with screws by the flange.
Finger safe on all sides according to DIN EN 50274.
Hinged with transparent removable cover.

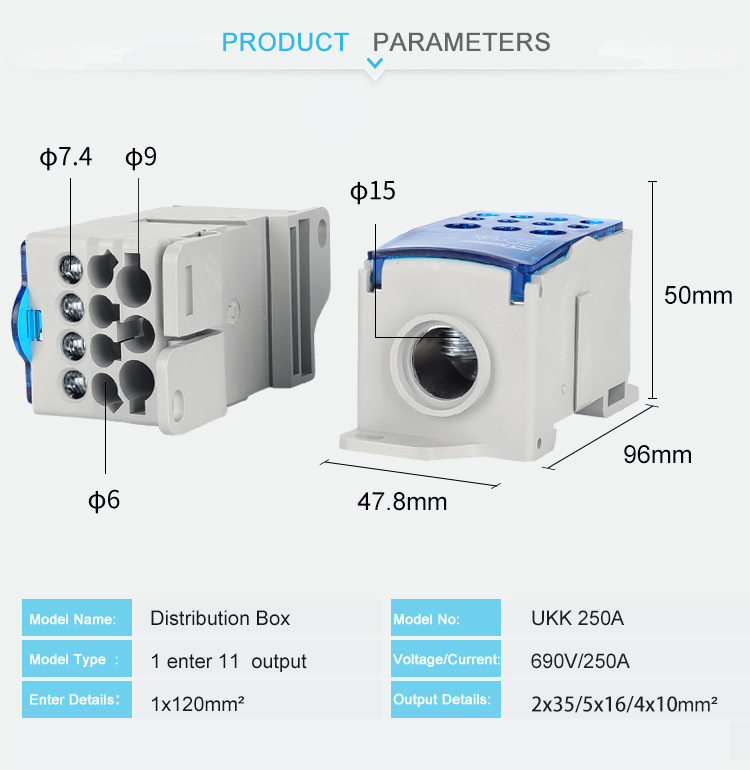

Technical Parameters

Model No.	UKK 250A
Color	Blue and Gray
Length/Height/Wide (mm)	47.8/50/96
Connection method	Screw connection
Material	Flame resistant Nylon PA66, brass conductor
Rated Voltage/Current	690V/250A
Entry Specification	1X120mm²
Output Specification	2X35/5X16/4X10 mm²
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Certification	CE/RoHS/CQC/ISO 9001
