JPTTB 1.5 / S-PV Push In Terminal Block Nylon PA66 V0 With Equipotential Bonder

Name: JPTTB 15 SPV Push In Terminal Block Nylon PA66 V0 With Equipotential Bonder
Brand: WKDQ
Price: 1 USD

JPTTB 1.5 / S-PV Push In Terminal Block Nylon PA66 V0 With Equipotential Bonder Manufactures

Brand Name : WKDQ

Model Number : JPTTB 1.5/S-PV

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 50 PCS

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : box

Model No. : JPTTB 1.5/S-PV

Color : Grey,Blue, other color can be customized

Connection method : Push-in connection

Country of origin : China

Standard : IEC 60947-7-1

Material : Flame resistant Nylon PA66 V0

Contact Now

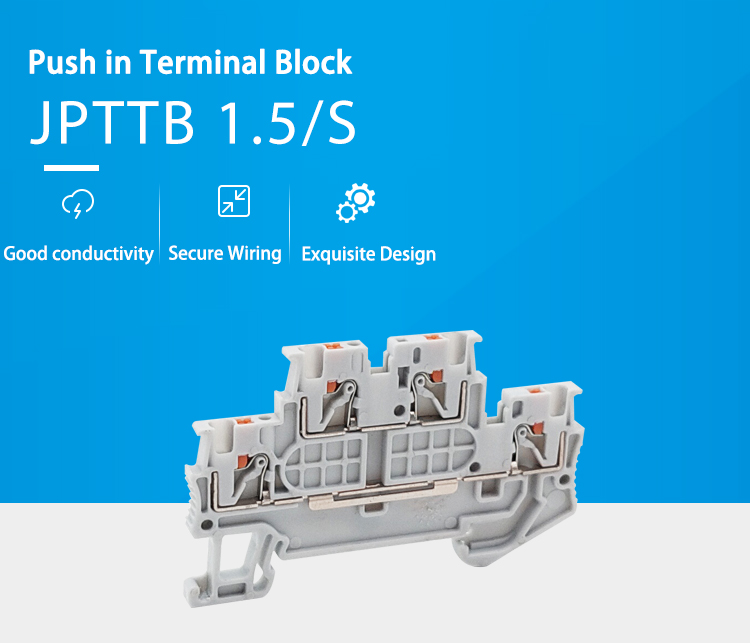

JPTTB 1.5/S-PV Din Rail Double Level Push in Terminal Block

1. DESCRIPTION:

Double Level compact design saving space. Light weight, saving transportation costs .With advanced push in technology make wiring easily and quickly, Push in directly and without tools, insert forces reduced by 50%. V0 Flame resistant PA66 material and copper conductor.

it is suitable for various applications.

l The Tool- Free design and the push in modular terminal block and the direct push-in connection enable easy

l Convenient insertion, thanks to 50% lower insertion force.

l To achieve electrical interconnection

l Flexibility: snap onto symmetrical and asymmetrical rails

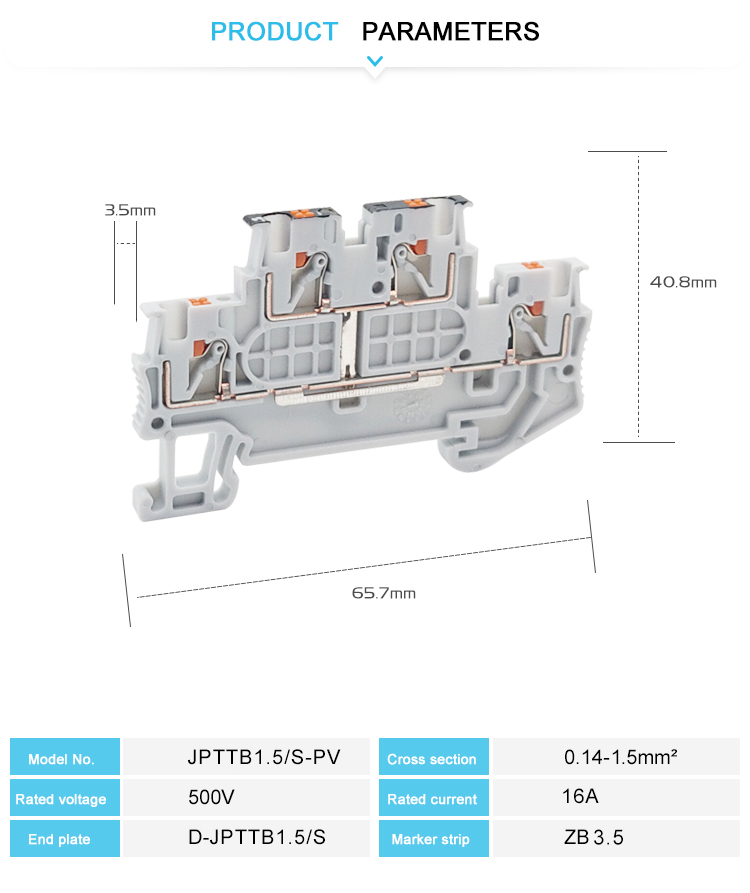

Technical Parameters

Model No.	JPTTB 1.5/S-PV
Color	Grey,Blue, other color can be customized
Length/Height/Wide (mm)	66413.5
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/16A
Cross section, solid/soft Cable	0.14-1.5mm²
Conductor Size	26-16AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WKDQ, LOGO can be customized
Packing Detail	6.4g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

Place of origin

ZheJIang, China
