JPT 1.5/S Push-in Connection Terminal Block

JPT 1.5/S Push In Connection Feed Through Wire Terminal Blocks 1.5mm type Feed Through Terminal Block with 3.5 thickness​

1. DESCRIPTION:

JPT push-in connection terminal blocks developed for direct conductor connection, the solid conductors or conductors with ferrules can be inserted directly into the terminal block without tools. The spring clamp enables the easy insertion of conductors,and also with vibration proof performance. The spring clamp is opened automatically when the conductor is pushed in and thereby provides the required pressure force against the current bar. For releasing conductors, just easily push the Orange Button to open the direct contact spring parts, then pick out the wire.The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.

Convenient insertion, save upto 50 percent lower insertion forces

The compact design and front connection enable wiring in a confined space.

Electric potential distribution can use fixed bridges in the terminal center.

3.5mm thickness saving space.

Available in different accessories: End cover, End Stopper, Marker strip, Plug-in bridge, Marker carrier,etc.

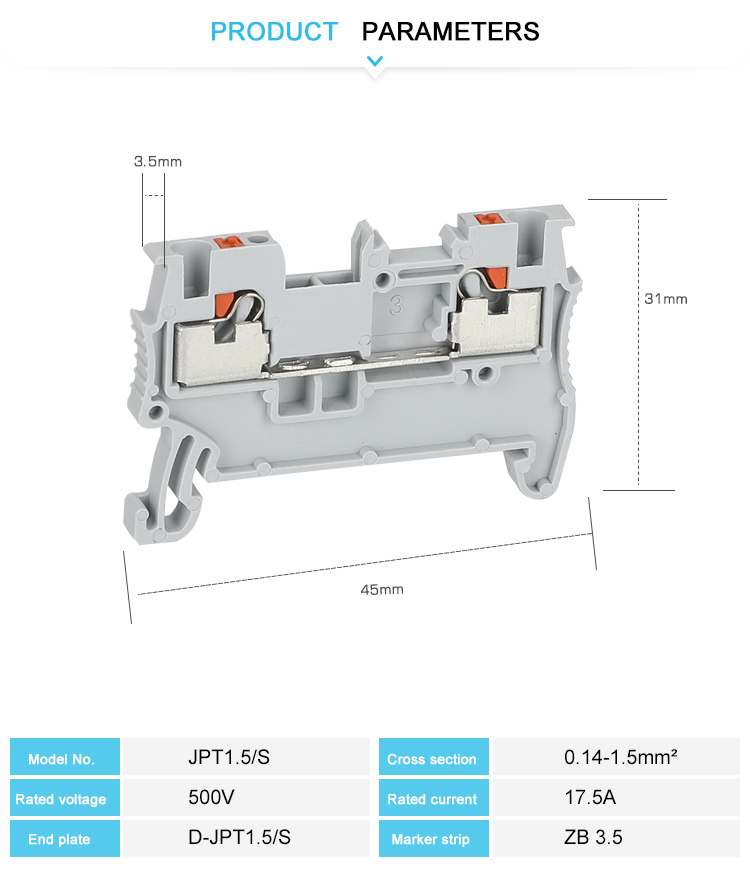

Technical Parameters

push fit terminal block connector

push fit terminal block

White Feed Through Wire Push In Terminal Block 1.5mm Type With 3.5 Thickness Images
