4mm2 Cable Din Rail Push In Terminal Block Anti Inflaming 24 AWG

Name: 4mm2 Cable Din Rail Push In Terminal Block Anti Inflaming 24 AWG
Brand: WKDQ
Price: 1 USD

4mm2 Cable Din Rail Push In Terminal Block Anti Inflaming 24 AWG Manufactures

Brand Name : WKDQ

Model Number : JPTV 2.5

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Type No. : JPTV 2.5

Country of origin : China

Wire cross section,solid cable : 0.14-4mm²

Wire cross section,soft cable : 0.14-4mm²

Packing unit : 100PCS/BOX

Net weight : 5.79g/pc

Contact Now

JPTV 2.5 Push in Side EntryTerminal Block DIN Rail

JPTV 2.5 Terminal Block Din Rail Quick Connecting Terminal Connector PTV 2.5

1. DESCRIPTION

The new PUSH IN modular terminal blocks with their simple handling and compact yet clear design, allow you to benefit from faster installation times and, in turn, from much higher productivity.

Made from engineer Nylon PA 66, Nickle plated Brass.

The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.

- Clear wiring with no bend radius because conductors are inserted from the side
- Easy-to-identify connection markings on the side of the terminal
- Wire markings are easy to affix and read because conductors are inserted from the side

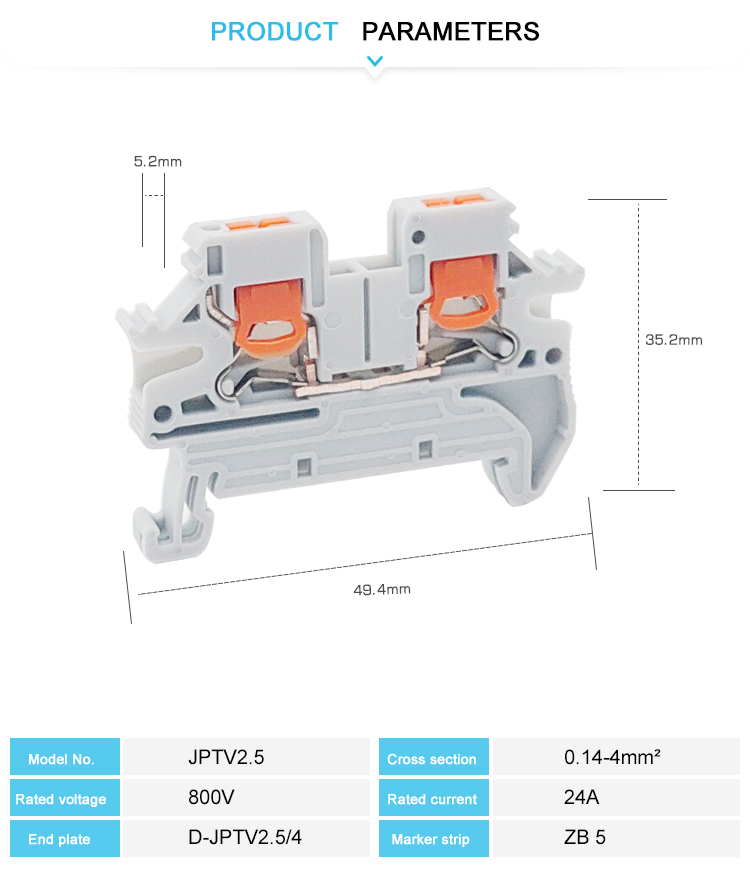

2.TECHNICAL PARAMETERS

Model Number	JPTV 2.5
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	49.4/35.2/5.2
Connection method	Push in connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	800V/28A
Cross section, solid/soft Cable	0.2-4mm² / 0.2-2.5mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WKDQ, OEM serivce is supporting
Packing Detail	5.79g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

4mm2 Cable Din Rail Push In Terminal Block Anti Inflaming 24 AWG
